CUSTOM MADE CABINET DOORS & DRAWER FRONTS

Give your kitchen a new look without the cost of replacing all of your existing cabinets with NEW solid wood doors and drawer fronts.
Available in unfinished, natural wood and stained clear coat finish, along with painted finishes in a wide variety of wood types

Ohio Amish Cabinet offers 3/4"
solid wood handcrafted
"custom made to your size"
cabinet doors and drawer fronts

All of our door styles are also available in a more economical paint grade door featuring a 3/4" thick Poplar or Maple frame with 3/4" High Density MDF inset panels

All Doors and Drawer Fronts are built to last a lifetime with the following features

SOLID WOOD DOORS
•  Custom built to your size specifications to the nearest 1/8"
Minimum door width
      Flat panel Square, Flat Panel Raised Square
      and Shaker Doors is 7"
      Raised Panel Arch & Cathedral Arched
      Panel Doors -12" Maximum door width 26"
Minimun door Height 10" - Maximum door Height 70" (Doors over 42" will be made double panel)
•  3/4" thick solid wood construction throughout
•  5 piece mortise and tenon and doweled construction
•  2-1/4" Standard stile and rail width, upon request, they can be made a different size if needed
•  Hinge Boring & Hinges are Available
•  Available in unfinished, natural wood and stained clear coat finish,along with painted finishes

PAINT GRADE SOLID WOOD DOOR FRAMES WITH HIGH DENSITY MDF PANELS
•  Custom built to your size specifications to the nearest 1/8"
Minimum door width
      Flat panel Square, Flat Panel Raised Square
      and Shaker Doors is 7"
      Raised Panel Arch & Cathedral Arched
      Panel Doors -12" Maximum door width 26"
Minimun door Height 10" - Maximum door Height 70" (Doors over 42" will be made double panel)
•  5 piece mortise and tenon and doweled construction
•  2-1/4" Standard stile and rail width, upon request, they can be made a different size if needed
•  Hinge Boring & Hinges are Available
•  Available in unfished and painted finishes only

SOLID WOOD DRAWER FRONTS
NOTE: Due to the screw holding strength that is need when installed, we only offer Drawer fronts
made from solid wood. we do not make or recommend MDF panel paint grade drawer fronts

•  Custom built to your size specifications to the nearest 1/8"
Minimun Drawer Front Height
      Flat panel, Flat Panel Raised and
      Shaker Fronts is 6-1/2"
      Slab and Slab Profile edge is 4"
Minimum Drawer Front Width is 7"
•  3/4" thick solid wood construction throughout
•  5 piece mortise and tenon and doweled construction
•  2-1/4" Standard stile and rail width, upon request, they can be made a different size if needed
•  Available in unfinished, natural wood and stained clear coat finish,along with painted finishes

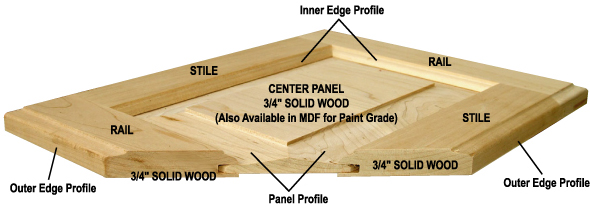

GENERAL DOOR & DRAWER FRONT CONSTRUCTION AND TERMINOLIGY
EDGE PROFILES - AVAILABLE FOR ALL DOORS & FRONTS
INNER EDGE PROFILE (RAILS & STILES)
IE1 IE2
ROUNDED OGEE
IE3 IE4
BEVELED SHAKER ONLY
RAISED PANEL PROFILE
RP1 RP2
OGEE STRAIGHT
RP3 RP4
COVE OGEE W/BEAD
OUTER EDGE PROFILE (RAILS & STILES)
OE1 OE2
ROUNDED SLANT ROUNDED STRAIGHT
OE3 OE4
QUARTER ROUND SHAKER ONLY

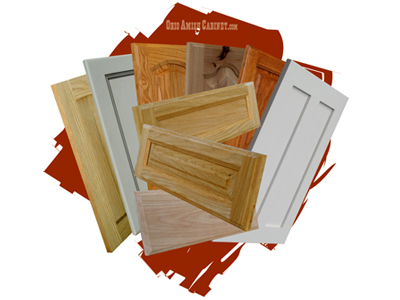

Cabinet Door and Drawer Front Styles

DOOR STYLES
FLAT PANEL DOORS -
Click on Thumbnail for Larger View
FPS - SQUARE TOP FPC -CATHEDRAL ARCH
FPCD - DOUBLE
CATHEDRAL ARCH		 FPA - ARCH TOP
FPAD - DOUBLE ARCH FPB - SQUARE
BEADED PANEL
RAISED PANEL DOORS -
Click on Thumbnail for Larger View
RPS - SQUARE TOP RPC -CATHEDRAL ARCH
RPCD - DOUBLE
CATHEDRAL ARCH		 RPA - ARCH TOP
RPAD - DOUBLE ARCH
SHAKER DOORS -
Click on Thumbnail for Larger View
SST - SHAKER SQUARE SSS - SPLIT SHAKER
SIDE BY SIDE
SBP - SHAKER BEADED PANEL
SHAKER DOORS -
Click on Thumbnail for Larger View
DFR -RAISED PANEL DFF - FLAT PANEL
DFS - SLAB PROFILE EDGE DFSH - SHAKER

Available Options

OVERLAY DOOR HINGE HOLE BORING
35MM Bores (2 Required per door)

OVERLAY DOOR HINGES
Available in 1/2" & Full Overlay (2 Required per door)

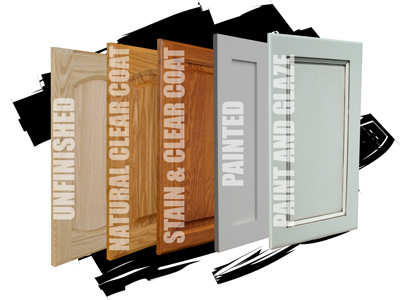

Cabinet Finishing


We offer multiple options in finishing from Unfinished Doors, Natural Clear Coated, Stained & Clear Coated, Painted to Painted and Glazed Doors to any finish you desire.


Click On Image - to learn more about our
finishing capabilities

Wood Species


      We offer 12 popular select woods to choose from for your Doors. Custom and exotic woods are available upon request..


Click On Image - to learn more about our Wood Species,
Characteristics and Recomended Finishes

DOOR & DRAWER FRONT PRICING

Our Custom Door pricing is based on Square footage, Door style, Wood Type and Finishing options
along with current material costs

Supply us the information needed by clicking on the request a quote icon below for current pricing


Need help with measuring for replacement Cabinet Doors
